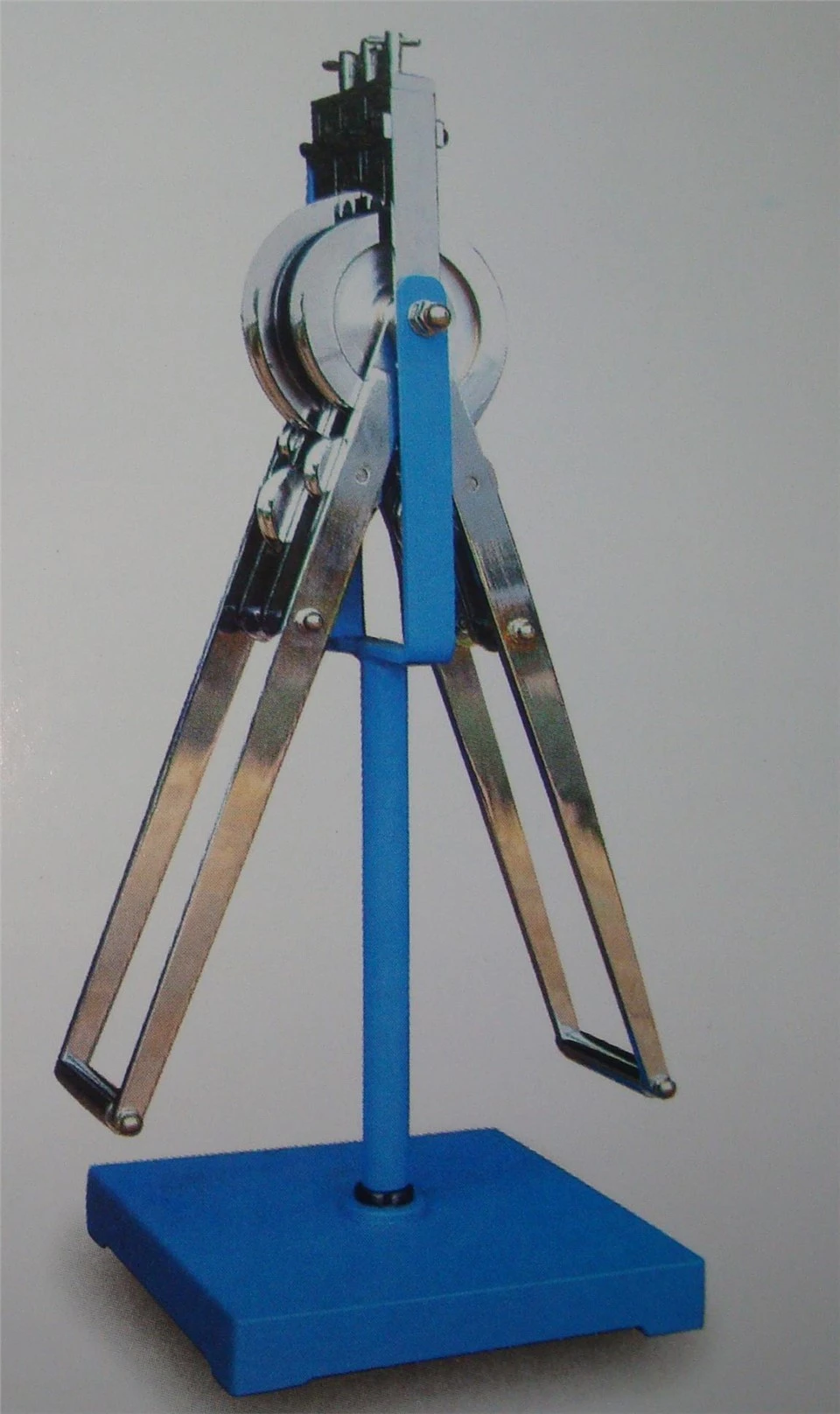

Plastic Pipe Tester

This machine is used for bending test of insulative electrician sleeve and other materials. The whole bending angle is 180°and after the test, you can observe if there is crack on the sample.

Send Inquiry

Product Introduction

This machine is used for bending test of insulative electrician sleeve and other materials. The whole bending angle is 180°and after the test, you can observe if there is crack on the sample. It complies with the standard of GB/T 14823.2 and JG 3050 Specification for Electrical Insulation Conduits and Fittings in Building.

Pipe Diameter	￠16mm, ￠20mm, ￠25mm
Shaped Mould Slot Bottom Semi-Diameter	R48mm, R60mm, R75mm
Semi-Diameter of Shaped Film and Bending Roller Slot	R84mm, R105mm, R131.25mm
Slot Bottom Diameter of Bending Roller	￠24mm, ￠30mm, ￠37.5mm
Bending Angle	180°
Dimension	350mm×320mm×850mm
Weight	30kg
